Manufacturer & Supplier of

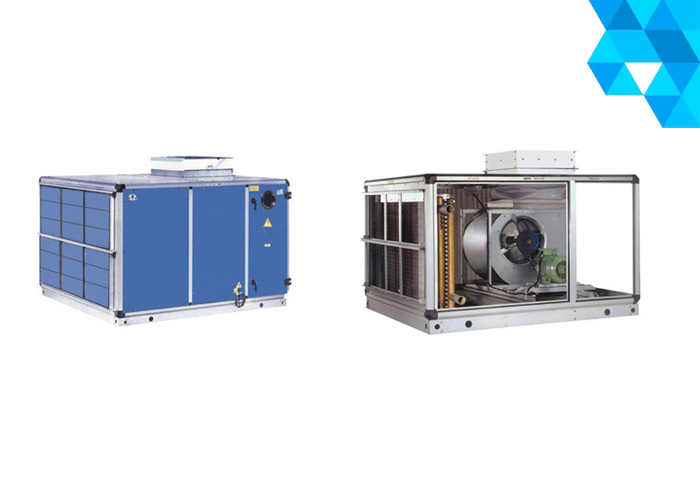

Air Handling Units
Introduction
The wide range of AHUs manufactured in the production unit are with world class capabilities and special features like internal covings & thermal brake external frames.
They are tailor made depending on the design, applications, availability of space and similar other parameters.
The Air Handling Units can be broadly classified as :
- Single Skin Air Handling Units - for all Ventilation applications
- Double Skin Air Handling Units - for all Air-conditioning applications
Single Skin Air Handling Units
As the name suggests, has a single casing made of G.I. or of material as per requirement.
Double Skin Air Handling Units
As the name suggests, has an outer casing made of sandwiched panels with polyurethane foam acting as a thermal barrier for better insulation.
Constructional Features (External Body & Framework)
The rigid framework of the unit comprises an assembly of externally chamfered extruded anodized aluminium profiles and nylon glass fibre corner joints.
This when incorporated with polyurethane foam, 25 mm / 43 mm, thick, pressure injected sandwiched panels, makes the entire unit anti-corrosive and sweat free.
Also, the imported self drilling and self tapping galvanized sheet metal screws adds to the aesthetic beauty of the framework.
Our Products
Double Skin
Air Handling Units
Horizontal Floor Mounted Type
All major components are aligned to the base tray, thus making it maintenance and service friendly.
Offers sturdy construction and flexible combination of various components like coils, filters etc. to suit specific applications.
Vertical Double Skin Air Handling Units
Designed to occupy lesser floor space in comparison with horizontal units. Panel opening in front of the fan section enables easy maintenance and serviceability of the unit.
Ceiling Suspended Units
As the name suggests, can be suspended from the ceiling, thus requiring zero floor space.
Completely noiseless and can be tucked away above the false ceiling, or inside the conditioned area itself, thus reducing installation costs and giving flexibility to the design of the interior.
